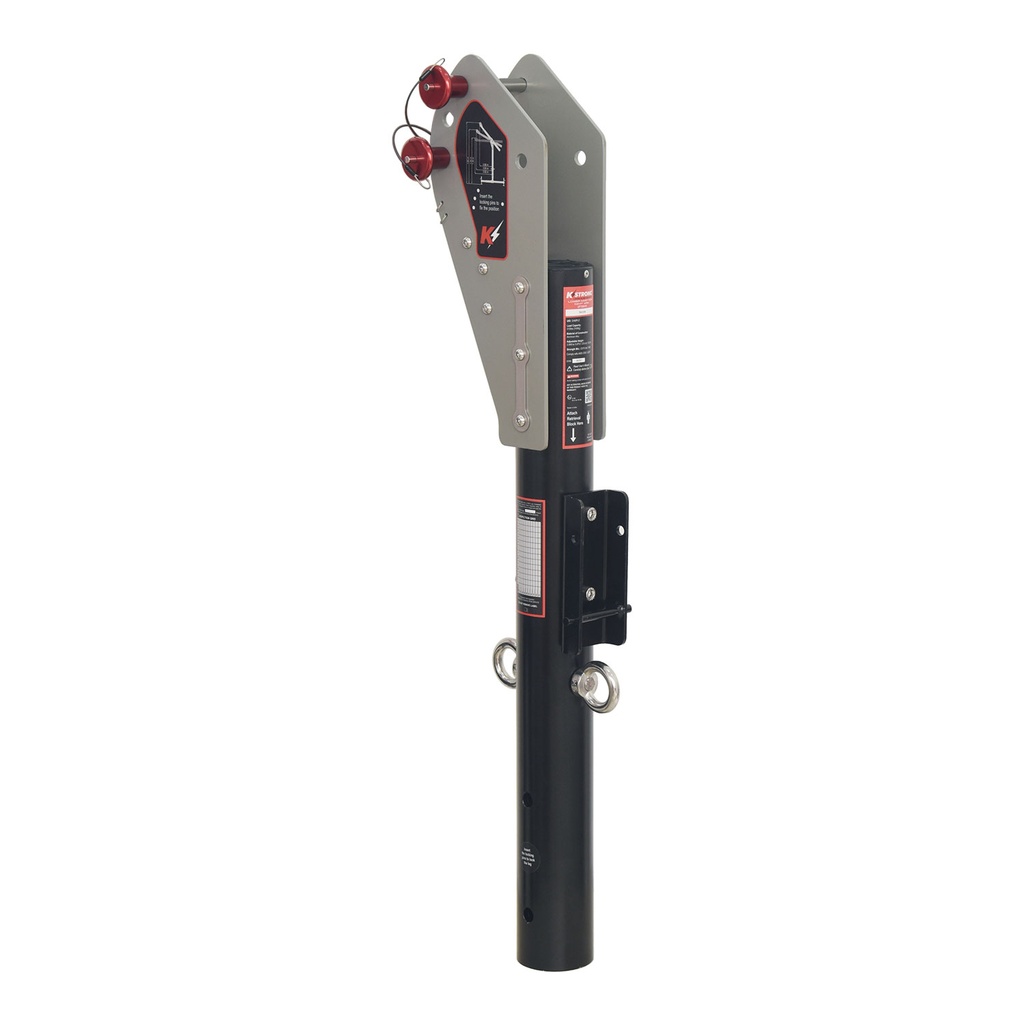

[FP-UFT556101] Megadavit™ 36 in. Column Mast (High Strength Aluminum Alloy)

Product Description

Features

DESIGN:

Lower mast assembly is designed to be fixed on KStrong® Megadavit™ system with H-base davit, wall/floor mounted, hitch mounting davit/concrete flush mounted davit.

Comes with pre installed mounting bracket which is compatible with retrieval blocks by using universal mounting bracket.

Upper offset mast (BOOM) support plate is designed to attach the upper offset mast with the help of locking pins & can be adjusted at 3 defined positions.

Additional eye nut is provide to use as an anchorage point in case of rescue.

Cap is provided on top of assembly to prevent ingress of water and dust particles

MATERIAL:

Lower mast: Aluminum alloy

Eye nut: Stainless steel

Mounting bracket: Alloy steel

FINISH:

Lower mast: ED coated grey

Eye nut: Polished

Mounting bracket: ED coated black

WEIGHT:

33.52 lbs ± 0.44 lbs. (15.20kgs ± 0.20kgs)

RELEVANT STANDARDS:

Conforms to EN 795:2012 Type A
