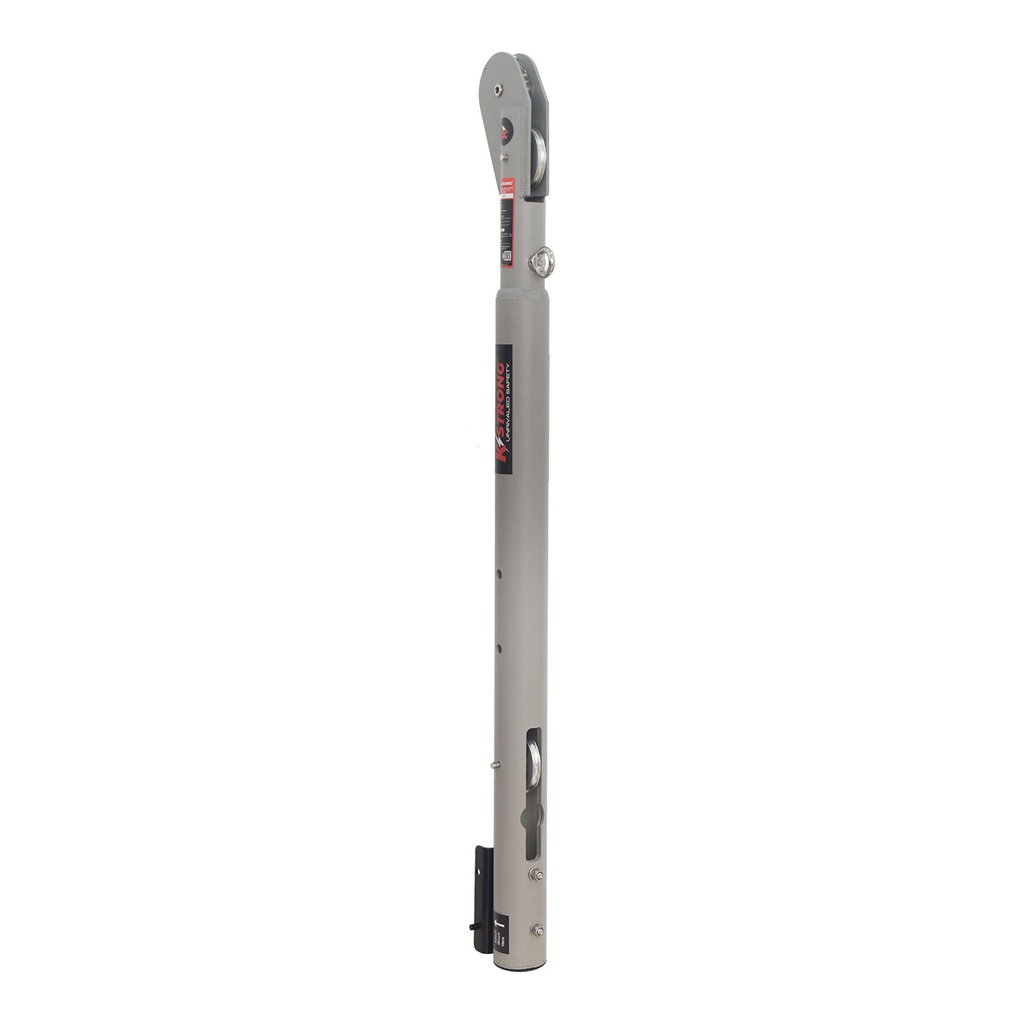

[FP-UFT556001] Megadavit™ 3 ft. Cantilever Boom Arm with Winch Bracket (High Strength Aluminum Alloy)

Product Description

Features

DESIGN:

Upper offset mast (BOOM) is designed to be fixed upon lower mast assembly to make complete davit system for confined space entry.

Upper offset mast can be used with lower mast of all models of KStrong® Megadavit™ system (i.e. H-base mounting, wall/floor mounted, hitch mounting davit/concrete flush mounted davits)

Comes with pre-installed mounting bracket which is compatible to mount KStrong winches

Comes with pulleys, which are used for smooth movement of rope / wire used for lowering / lifting or rescue

Additional eye nut is provide to use as an anchorage point in case of rescue

MATERIAL:

Mast arm & big pulley: Aluminum alloy

Small pulley & eye nut: Stainless steel

Mounting bracket: Alloy steel

FINISH:

Mast arm & big pulley: ED coated grey

Small pulley & eye nut: Polished

Mounting bracket: ED coated black

SYSTEM STRENGTH:

Housing: Stainless steel

Sleeve: PTFE

WEIGHT:

27.51 lbs. ± 0.44 lbs. (12.47kgs ± 0.20kgs)

RELEVANT STANDARDS:

Conforms to EN 795:2012 Type A
