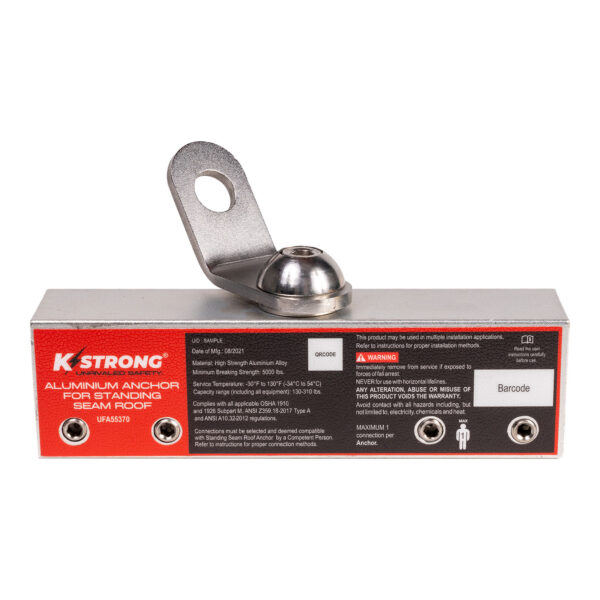

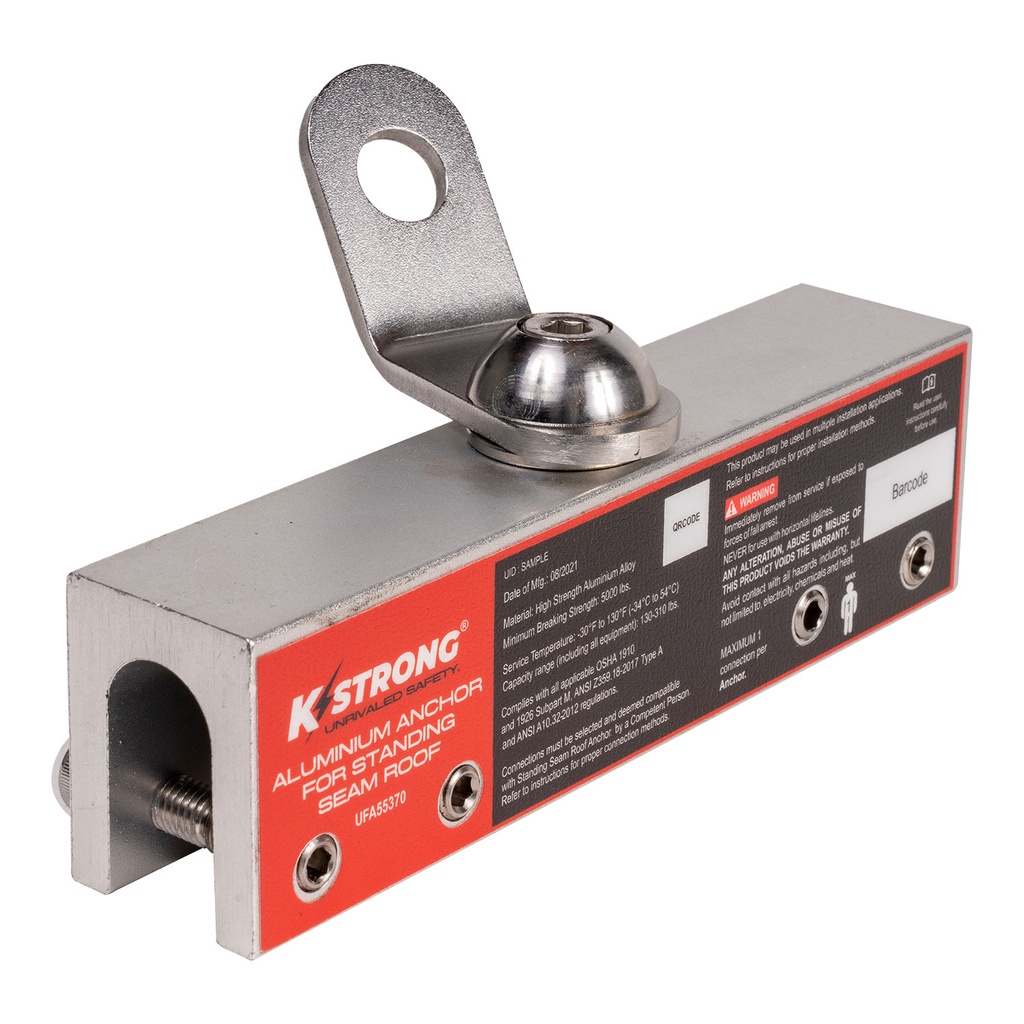

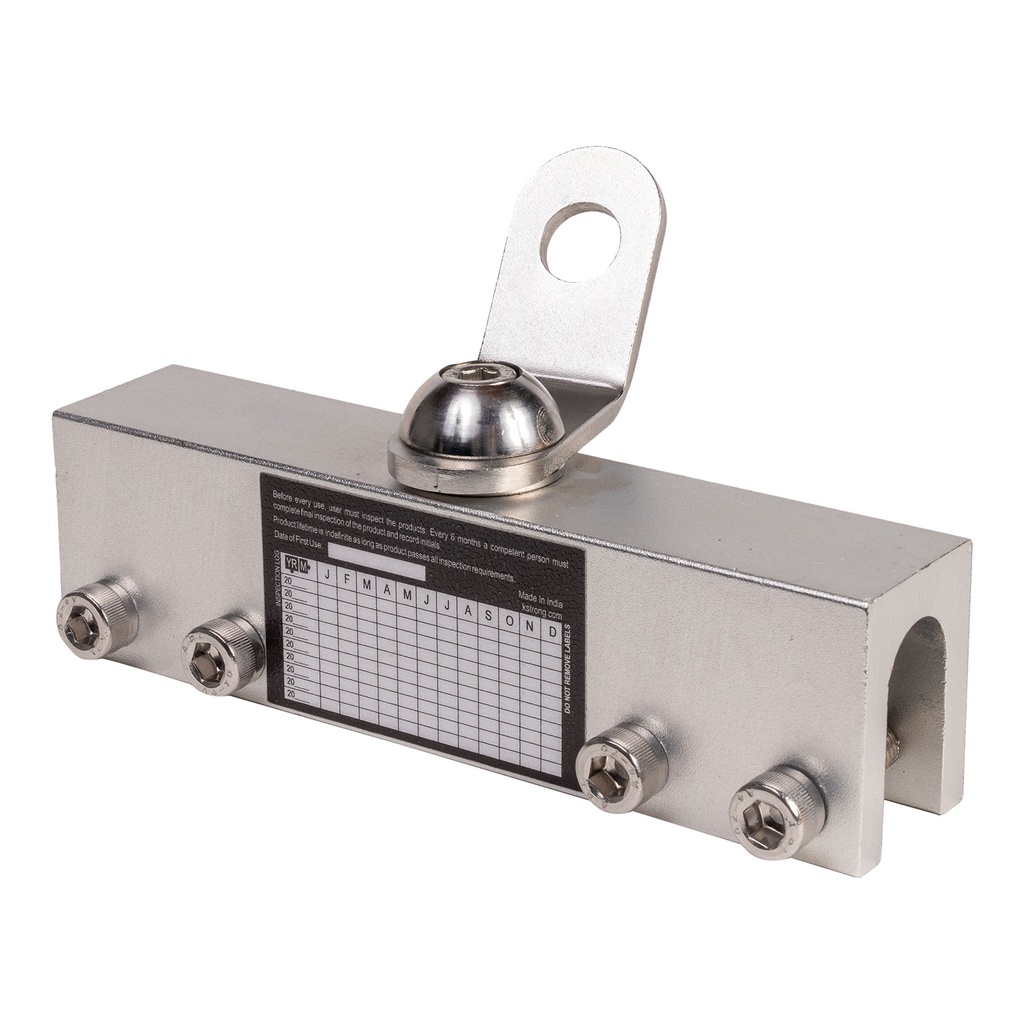

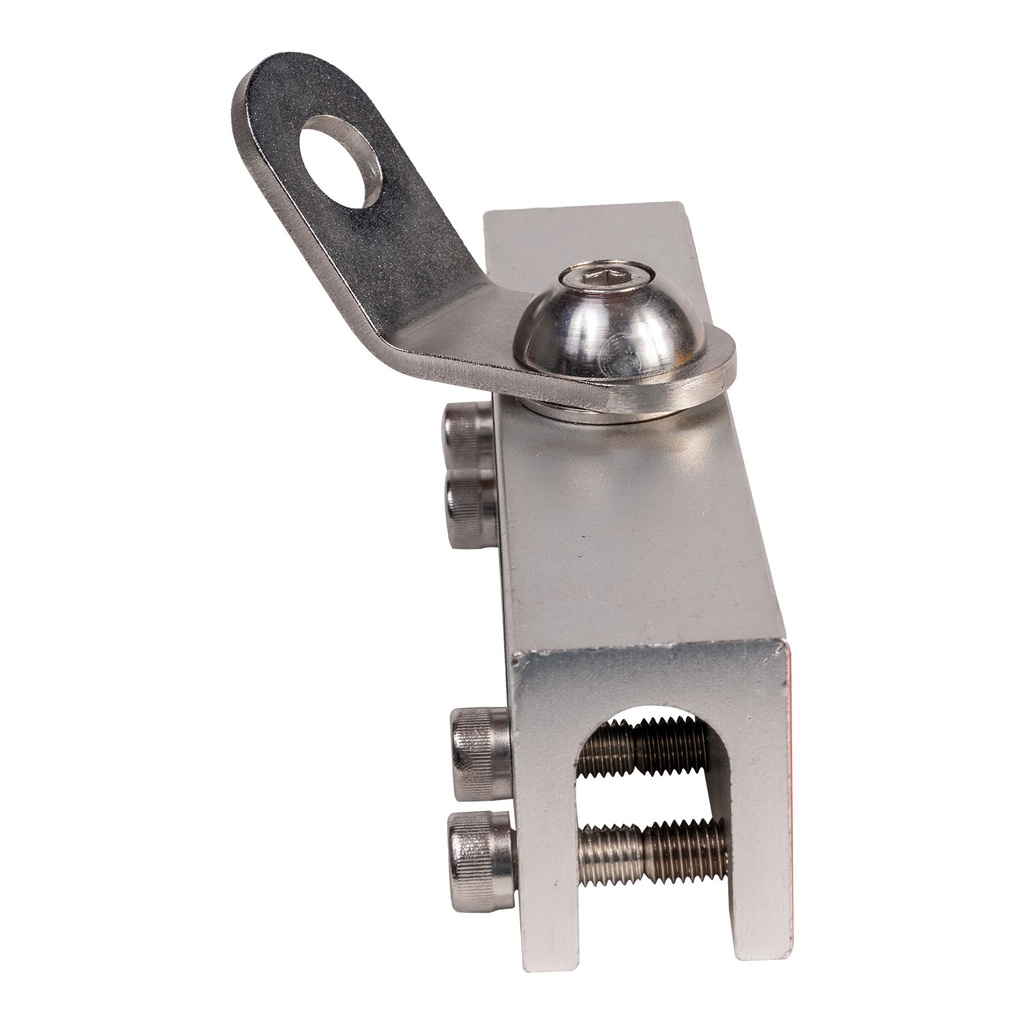

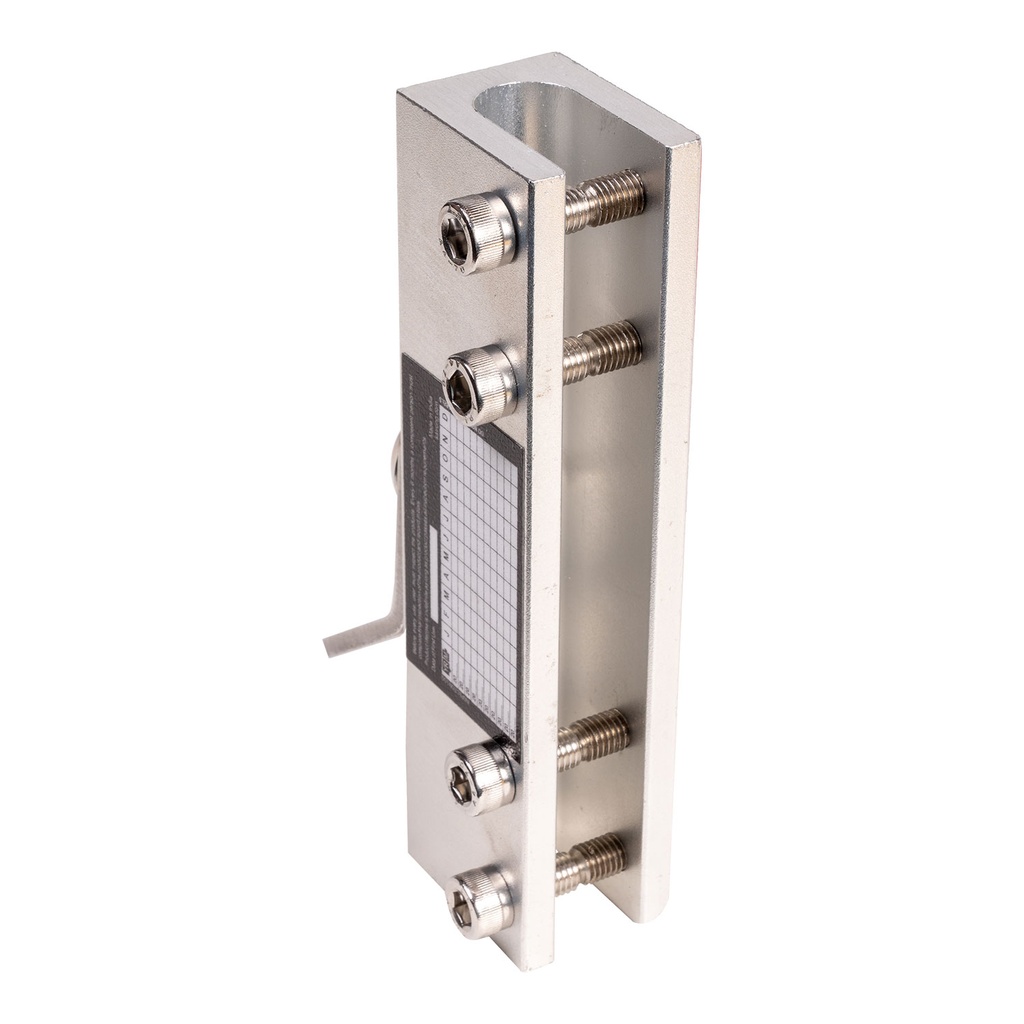

[FP-UFA55370] Single Seam Roof Anchor

Product Description

Features

DESIGN:

Roof top anchor device is designed to be fixed on metal standing seam and I beams to install horizontal life lines.

Trolly lateral hinge (Swivel anchorage eye) on the top provides universal connection and is used as an anchorage point.

The anchor is fixed on to the roof top by use of Screw set.

Can be installed on up to 0.91 in. (23 mm) bulb size on standing seam roof.

MATERIAL:

Aluminum Alloy & Stainless Steel

FINISH:

Natural Silver, Anodized

MINIMUM BREAKING STRENGTH:

23kN

WEIGHT:

1.84 lbs. ± 0.02 lbs. (834 gm ±10 gm)

RELEVANT STANDARD:

Meets or Exceeds ANSI/ASSP Z359.18-2017
